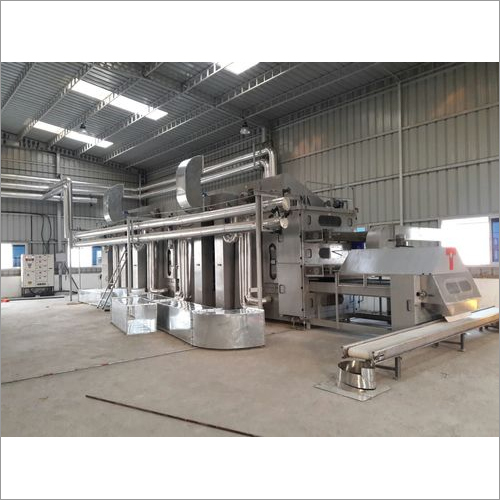

2D 3D Fryums Drying Plants

Model

Model I

Product

FRYMUS- EXTRUDED OR 2D / 3D

Capacity

150 KG\HR

POWER

Centrifugal Exhaust blower

4.4 KW (2.2 KW x 2 NOS.)

Cooling Blower

1.5 KW

Conveyor Gear drive

1.9 KW (0.37 KWX 5 NOS.)

Material mixer drive

1.5 KW (0.75 KW X 2 NOS.)

Vibrating Feed Drive

0.75 KW

Total

10.05 KW ~ 10 KW

Working temperature

70 80 C

Heating media req

HOT AIR GENERATOR 1.0 LK KCAL-HR

Drying Bed Area (SS conv Width x Length)

1.5 mtr x 5 mtr + 2.5Mtr Cond Belt

No of Layer

5 Layers

Dryer Efficiency

70.00%

Over all space require for dryer ( Length x Width x Height _ in mtr)

10 MTR X 2.75 MTR X 4 MTR

(ALL SPECIFICATION AND DESIGN RIGHT RESERVED BY -OPTYTECH.)

Model

Model_I

Product

HOT AIR BOILER

Capacity

1.0 LACKS KCAL HR

POWER

Centrifugal CA blower

7.5 KW (7.5 KW X 1NOS.)

Furnace Id Fan

1.5 KW

Furnace Fd fan

0.75 KW

Total

9.75 KW

Working temperature

100 120 C

Fuel consumption

60 kg- wood ( GCV 2400 )

No of PASS

5 pass

Dryer Efficiency

70.00%

Over all space require for dryer ( Length x Width x Height _ in mtr)

5 MTR X 3 MTR X 4.5 MTR
